UPDATED 06.25.2022
Here you go.. all the benefits of an Unlimited with all the Horsepower you could want.

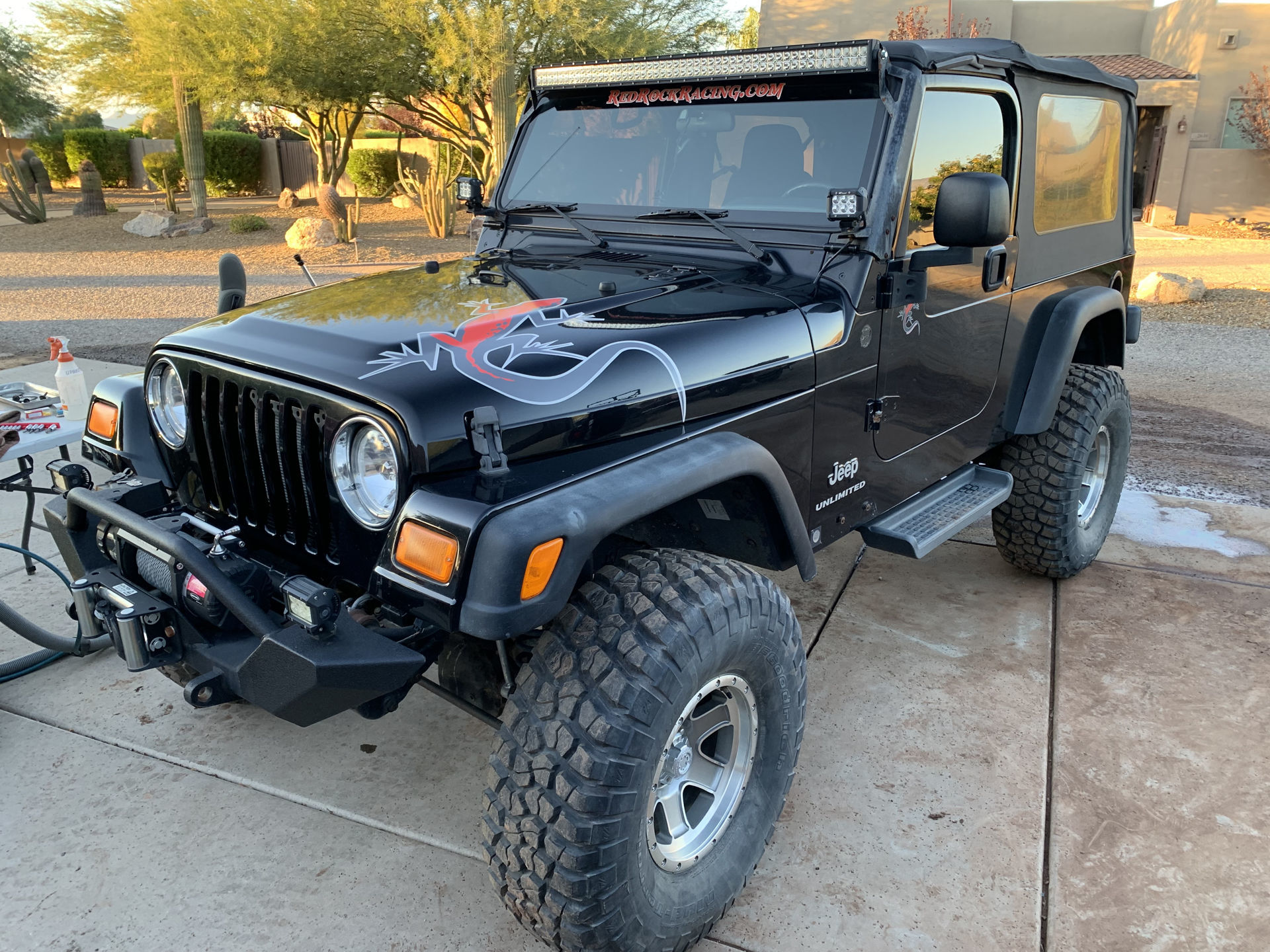

2004 LJ with a 2008 90K 5.7 HEMI Conversion with a 545RFE Automatic Transmission and Air Conditioning. The 5.7 HEMI has been outfitted with JBA shorty headers, 2.5 full emissions compliant exhaust, cold air kit and is cooled by a true 2 core aluminum radiator with a 16" electric fan.
The Transfer case was rebuilt and a Teraflex SYE kit was installed along with a Teraflex 2 LOW Kit as well. With this set up, you can put it in LOW Range in 2WD.
This was one of the owners personal jeeps. 112K original miles on the chassis before the conversion. New fenders were installed, as well as replaced the Heater Core during the build. Jeep is solid, frame is solid.
The Jeep just recently had the 'Hot Rod" exhaust system re crafted with Heavy Metal Catalytic Converters, rear O2 sensors and the ECU retuned so that the Jeep is now fully emissions compliant. No Codes, No Lights on the dash.
The Jeep was used as a Demo Rig and Trail Rig for the shop. It has been fully tested on the trails including Windrock Offroad Park in TN and Harlan KY too!
If your looking for an Emission Compliant TURN KEY TESTED AND PROVEN RIG .. this is the Jeep for you!
The build list:
DRIVELINE:
2008 Gen 3 5.7 Engine
545RFE AUTOMATIC Transmission
NP231J Transfer case,
Teraflex Mega Short SYE Kit
Teraflex 2 LOW Kit
New Front D/C driveshaft
New Rear D/C Driveshaft
Red Rock Off Road-Aluminum 2 Core Conversion Radiator
Red Rock Off Road-16" Electric Fan with Aluminum Fan Shroud
Red Rock Off Road-5.7 Truck HEMI Intake Adapter
Red Rock Off Road-Fuel Pump Kit
Red Rock Off Road-Transmission Cross-Member Kit
Red Rock Off Road-External Transmission Cooler Kit
Red Rock Off Road-4WD Cable Shifter Kit
Red Rock Off Road-Overflow/Expansion Bottle
Red Rock Off Road-Custom Cold Air Intake- 3.5" Aluminum Tubing-TIG Welded
JBA Shorty HEMI Headers, modified by Red Rock
2.5 Mandrel bent full Exhaust system fully welded
Thrush Welded Series Muffler
NTK O2 Sensors
Hi-Flow Catalytic Converters
Complete Air Conditioning System
New MOPAR Shifter Assembly
New MOPAR Auto Shifter Cable
Dana 44 Rear with 3.73
Dana 30 Front with 3.73 and a BRAND NEW YUKON Air Locker
Dana 30 Front BRAND NEW Chromoly 30 Spline Axle shaft kit
Dana 30 NEW Inner Axle Seals [x2]
New ARB Compact Air Compressor
SUSPENSION:
Zone Off Road 4" Lift Kit with Nitrogen Shocks
Red Rock Off Road 1.25" Body Lift Kit
New Front Upper Ball Joints
New Front Lower Ball Joints
APPEARANCE, ACCESSORIES: ALL NEW....
XRC Front Winch Bumper with D Ring Mounts
XRC 9.5 Winch
XRC Rear Bumper with D Ring Mounts
LED Pod Lights on the bumper
50" LED Lightbar and Mounts
LED Pods on Windshield Mounts
New Tint on Front Doors
New Exterior Graphics to match Gauges
INTERIOR: All New
[4] Stock Style Rocker switches to control light system
Locker and Compressor Switches on the Dash
Pioneer MIX TRAX Multi-Media In-Dash Radio with BLUETOOTH, Hands-free, XM, Pandora
Rockford Fosgate 5.25" Dash Speakers with Correction Brackets
Rockford Fosgate 6" Sound Bar Speakers
BOSS Audio Center Console DVC Subwoofer
Stock Interior is ALL THERE. Nothing Missing and in Great Condition. No rips or tears. No extra holes in the Dash Board or Dash Panels. All Roll Bar Padding is installed.
Build Receipts total over $32k in parts and labor for this awesome Jeep.
Jeep Blue Books at $14,500 Stock.
Jeep is currently located in Phoenix Arizona. With the move to Phoenix, we are liquidating some of our fleet Jeeps to make room for new projects.
$35,000 or Best Reasonable Offer on the Rig. Call for more information, more pics or video.
You want a Jeep just like it, or have an LJ you want to do this too? Give us a call to make that a reality!
